RONTRON-R-JUWEL pushbutton from SCHLEGEL
Product information
Sketches

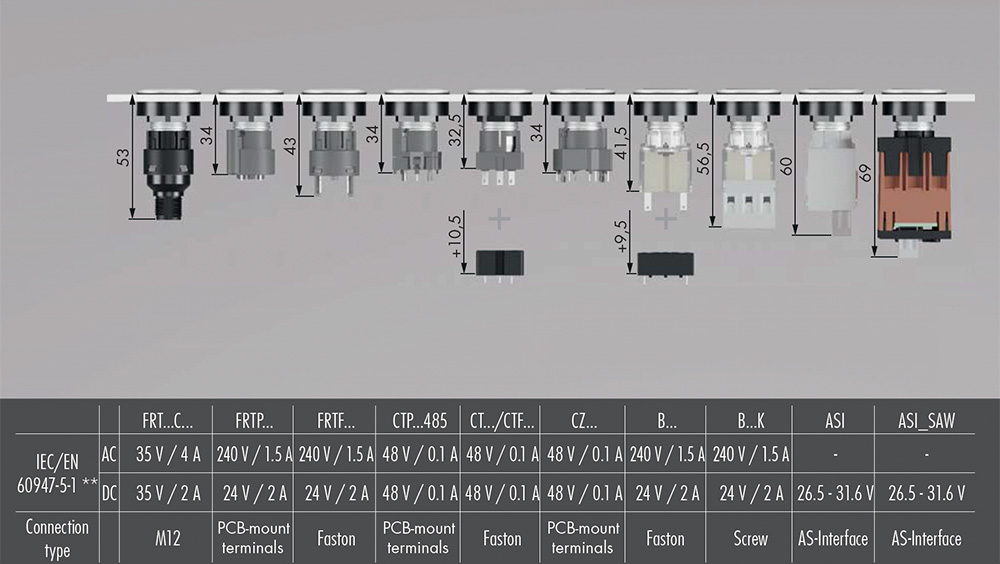

Mounting depth dimensions
Product configurator
| Front dimension | Ø 28 mm |
|---|---|
| Panel cut-out | Ø 22,3 mm |
| Front bezel height | 2 mm |
| Travel | 3 mm |
| Degree of protection* | IP65/IP66/IP67/IP69K |
| Front bezel colours |
|
* individual degree of protection, depending on the respective type
** maximum voltage or current values, depending on the type they may also be lower, e.g. for gold-plated contacts or depending on the number of connections
