Pushbuttons and switches of the series OKTRON®
Product information
Sketches

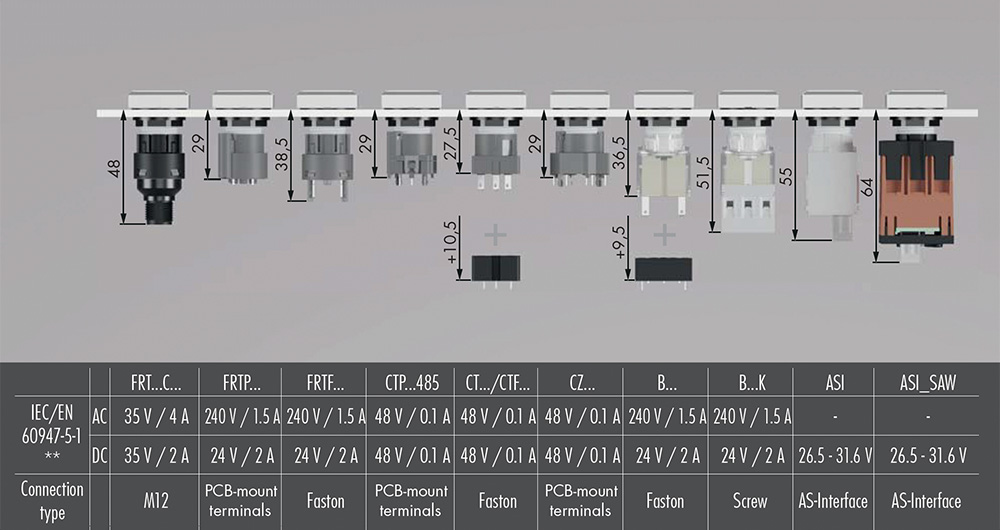

Mounting depth dimensions
Product configurator
Back
| Front dimension | 25 x 25 mm |
|---|---|
| Panel cut-out | Ø 16,2 mm |
| Front bezel height | 7,5 mm |
| Travel | 3 mm |
| Degree of protection* | IP65 IP65/IP67 (Emergency-stop) |
| Front bezel colours |
|
* individual degree of protection, depending on the respective type
** maximum voltage or current values, depending on the type they may also be lower, e.g. for gold-plated contacts or depending on the number of connections
