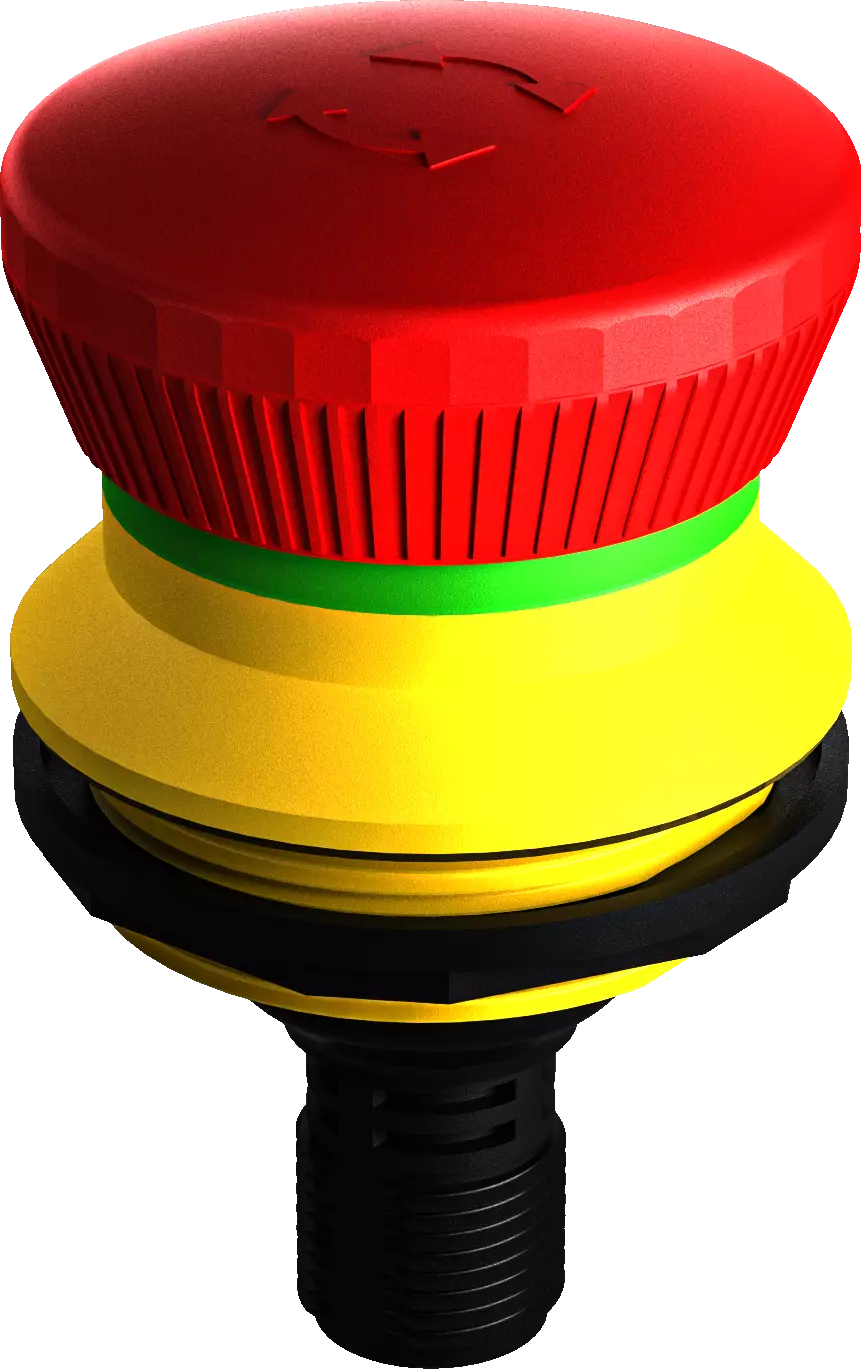

KRVKOO_C111 - Emergency-stop with 5-pole M12 connector
Operating Temperature
-25 ... 70°C
Approbations
TÜV_Süd , cURus , CE , UKCA
Series
KOMBITAST® connect
Connection Type
M12 plugs
Storage Temperature
-40 ... 80°C
Mounting Aperture
Ø 30,5mm
Release
Twist to release left/right
Class of Protection
II (protective insulation)
Protection Class Front
IP65
Contact Type
2NC
Rated Operating Voltage
35V DC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
Electrical Life
50.000 switching cycles at rated load
50.000 switching cycles
50.000 switching cycles
Anti Block Collar
No
Shape
round
Mechanical Life
50.000 switching cycles
Front Bezel Color
yellow
Illumination
No
Technical sketches
Downloads
Datasheet_KRVKOO_C111
