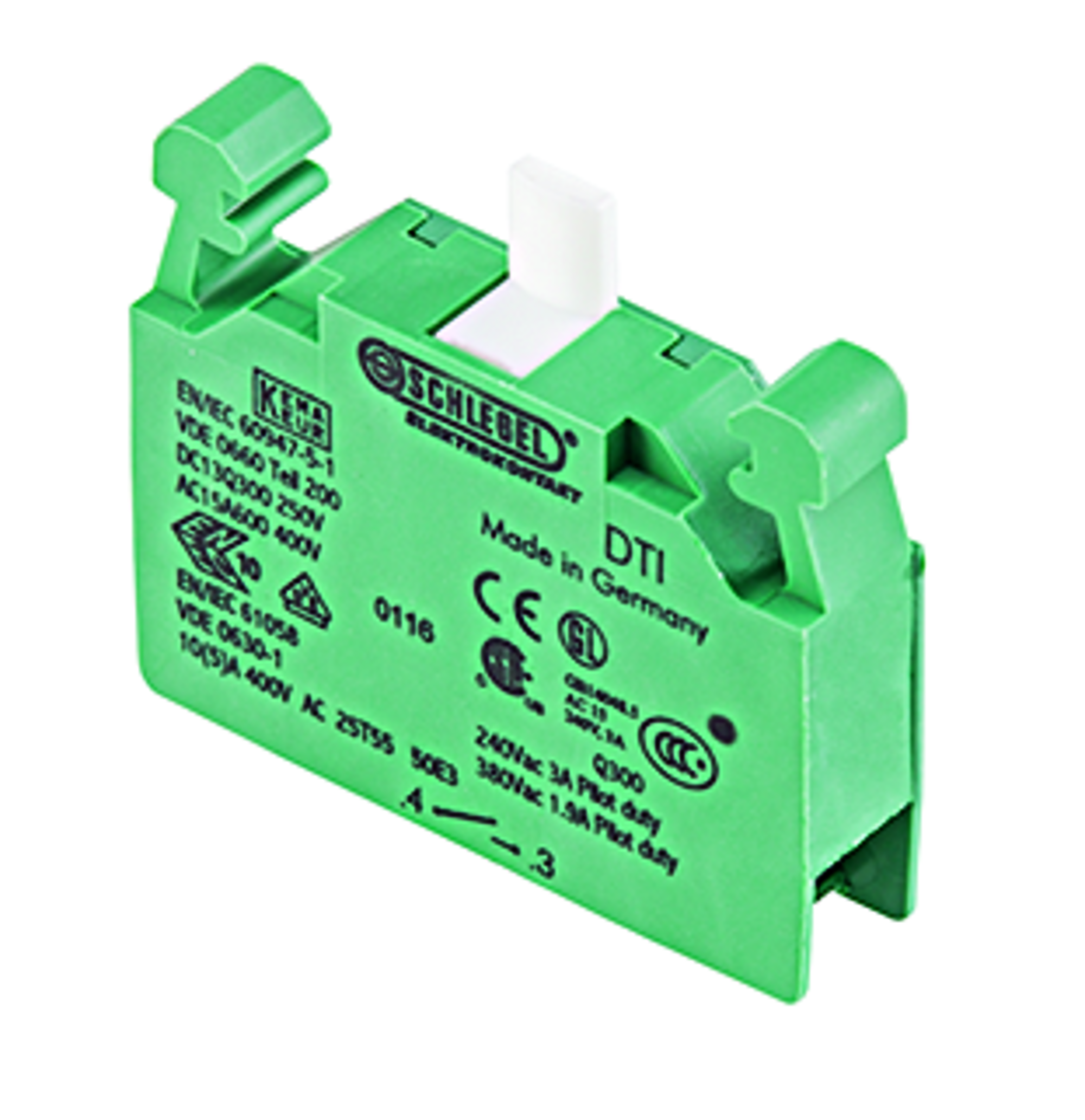

DTI - Modular contact block, momentary
Approvals
DNVGL , TÜV_Süd , VDE , cCSAus , CCC , KEMA KEUR , ENEC10 , CE , UKCA
Mechanical life
1,000,000 switching cycles
Contact type
1NO
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
600 V AC
600 V DC
400 V AC
400 V DC
600 V DC
400 V AC
400 V DC
Protection class
II (protective insulation)
Colour housing/enclosure
green
Degree of protection front
IP20
Electrical life
50,000 switching cycles
Series
Contact blocks D...
Storage temperature
-40 ... 70°C
Operating travel
6 mm
Operating temperature
-25 ... 55°C with/without illumination
Illumination
no
Rated operating voltage
250 V DC
380 V AC
24 V DC
125 V DC
240 V AC
60 V DC
380 V AC
24 V DC
125 V DC
240 V AC
60 V DC
Rated operating current
0.55 A DC
0.27 A DC
1.9 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.9 A AC
3 A AC
2 A DC
1 A DC

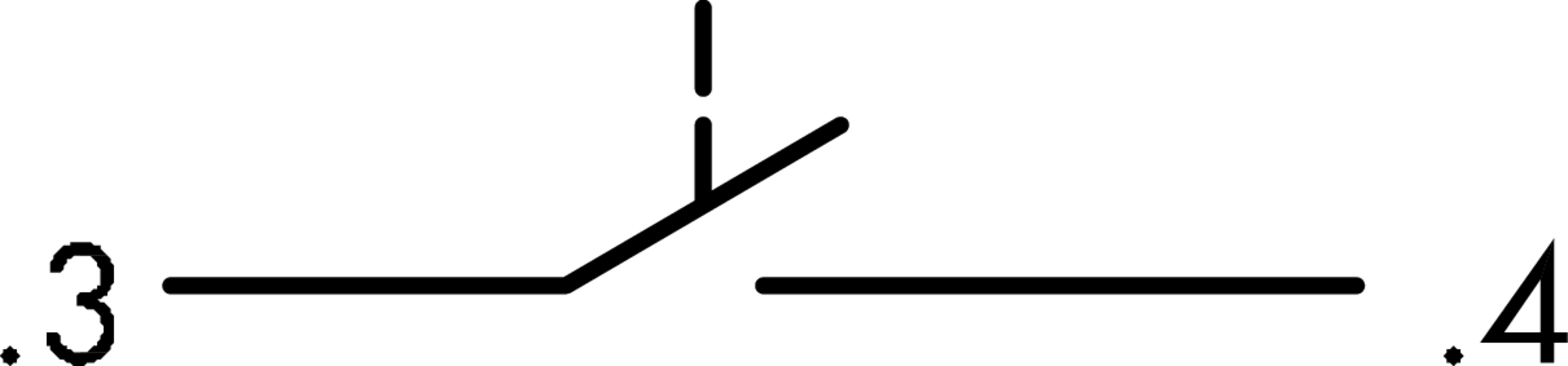

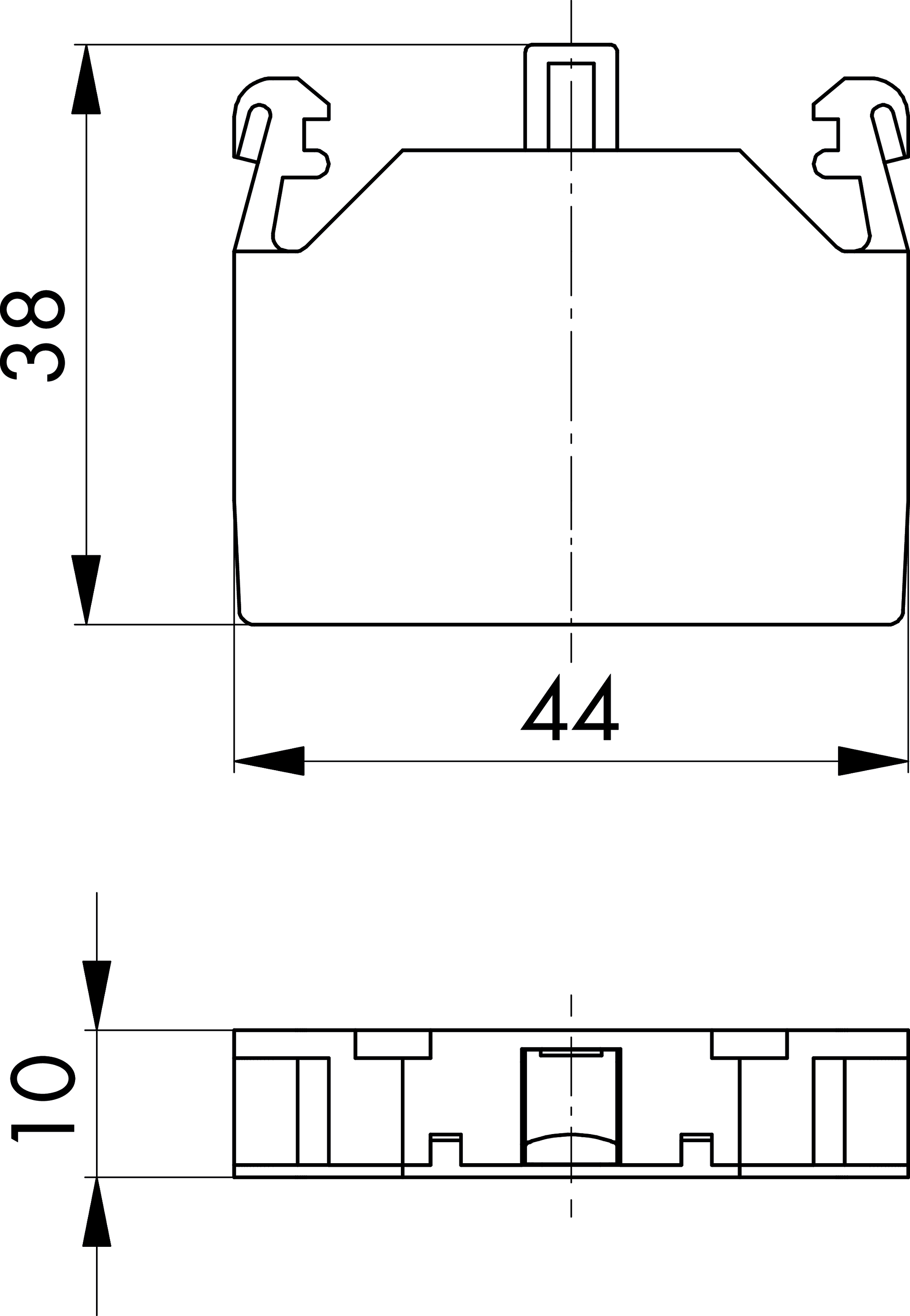

Technical sketches
Downloads

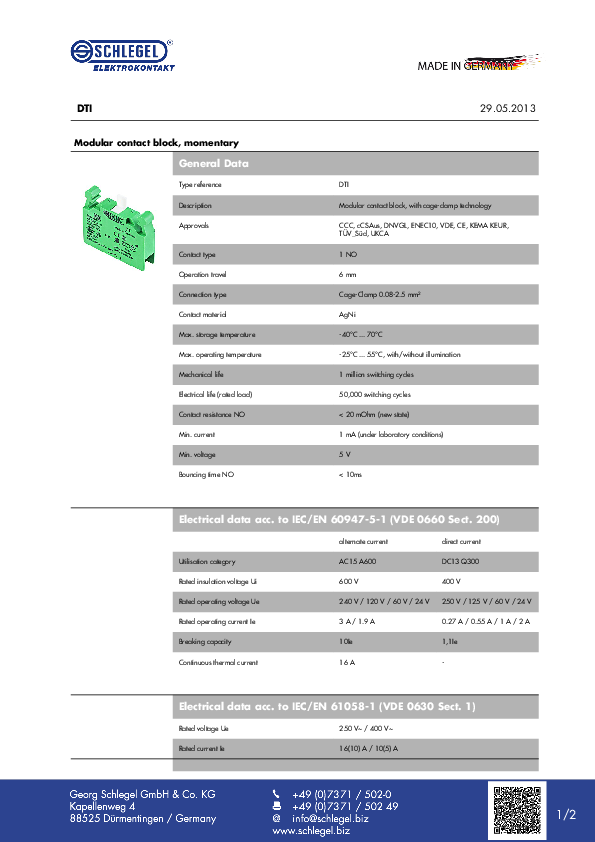

Datasheet_DTI
